Heat Exchangers

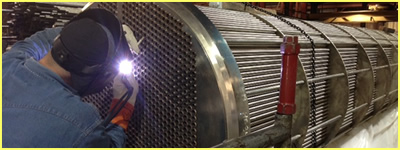

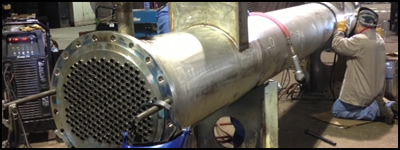

In almost any chemical, petrochemical or refining system, heat exchangers are used to transfer heat from one fluid to another. The most basic and the most common type of heat exchanger construction is the tube and shell type.

Pacific Engineering Pty Ltd designs and supplies shell and tube-type heat exchangers based on local and international standards. We design reactors, columns, strippers, condensers, coolers, heaters, reboilers, distillation columns, falling film evaporators and finned tube air coolers or modify your existing heat exchanger and provide thermal/mechanical designs and detail drawings.

Alterations to existing heat exchangers - we can alter existing exchangers to suit your requirements:

  • Redesign thermally and mechanically to meet new process conditions
  • Interchange flowing media between the tube and shell side
  • Design a new bundle to conform to an existing shell in-service
  • Increase the number of passes to control fouling
  • Modify tube layout to allow cleaning
  • Material change/improvement on either side.

Pacific Engineering Pty Ltd can provide detailed design including thermal and mechanical calculations, detail drawings, third-party design verification, design registration and external fabrication inspection services for an exchanger.

Some of the projects we have completed include:

- Zone 1 Heat Exchanger for BlueScope Steel (AIS) Pty Limited (Port Kembla-NSW)
- an Air Cooler for BlueScope Steel (AIS) Pty Limited (Port Kembla-NSW)
- (4) Heat Exchangers for Oxygen Compressors & Argon Exchanger for Air Liquide Australia Limited (Botany-NSW)
- Regeneration Gas Heater for BOC Limited (Dandenong-Victoria)
- DBO Bundle Refurbishment for BlueScope Steel Pty Limited - (4) Heat Exchangers for Oxygen Compressors, Argon Exchanger for Air Liquide Australia Limited
- Kettle Reboiler (Clean Stem Generator) for APT Eng – 1000 kg/hr, Stainless steel. Designed to TEMA & AS 1210
- Boiler Steam Coil Air Heater Upper Tube Bundle for BlueScope Steel (AIS) Pty Limited (Port Kembla-NSW)
- Ethylene Vessel for BECHTEL / STEWART TOOL CO - Australia Pacific LNG Project. Designed to ASME including Finite Element Analysis (FEA) on headplate nozzles.

To request a quote and send files, please send an email to the email address provided below.
sales

The Tubular Exchanger Manufacturers Association, Inc. (TEMA) is a trade association of leading manufacturers of shell and tube heat exchangers and is an accepted authority worldwide for shell and tube heat exchanger designs.

Heat Exchanger Design Considerations

Fluid allocation
Tube side is preferred under the following circumstances:
- Fluids that are corrosive, toxic, or prone to foul.
- Streams with low flow rates, very high design pressure or very high design temperature, streams with a low allowable pressure drop.

Tube layout
- Triangular pitch is better for heat transfer and surface area per unit length. A square pitch is required for shell-side mechanical cleaning.
- For the identical tube pitch and flow rates, the triangular layout will have the highest heat transfer coefficient and the highest pressure drop. The square layout will have the lowest heat transfer coefficient and the lowest pressure drop.
- The triangular pitch provides a more compact arrangement, resulting in a smaller shell and the strongest tubesheet for a specified shell-side flow rate.
- Square pitch simplifies cleaning and has a lower shell side pressure drop.
- Tube pitch is usually chosen so that the pitch ratio is between 1.25 & 1.5.

Tube size & length
- The most common plain tube sizes are 15.88, 19.05, and 25.40 mm outside diameters. Smaller diameter tubes yield higher heat transfer coefficients and result in a more compact exchanger. However, larger diameter tubes are easier to clean. For mechanical cleaning, the smallest practical size is 19.05 mm. For chemical cleaning, smaller sizes can be used.
- Standard tube lengths are 4877, 6096, 10972 & 12192 mm for carbon steel tubes.

Baffle cut & spacing
- Segmental baffles normally should not be closer than 20% of the shell inside diameter or 50.8 mm whichever is greater.
- Baffle and support plate spacing are determined by mechanical strength and vibration.
- Baffle cuts can vary between 15% and 45%.
- Baffle spacing determines the effective shell side velocity and hence has the greatest influence on shell side pressure drop.
- To achieve good vapour distribution the vapour velocity should be as high as possible and consistent with satisfying pressure drop.

Major TEMA Exchanger Types and Their Advantages & Limitations

U-Tube Exchangers (AEU, BEU):
Removable tube bundle. Suitable for high pressure/temperature and larger thermal shock applications. Does not require an expansion joint. Recommended for clean process fluids and those subject to chemical removal on the tube side, with limited mechanical cleaning on the shell side. Requires full re-tubing (partial re-tubing is very limited). Draining the tubes is difficult when mounted in the vertical position with the tubesheet side up. Wall thickness at the u-bend is thinner than at the straight portion of tubes due to bending. U-bends may require stress relief.

Fixed Tubesheet Exchangers (AEM, BEM, NEN):
Tubesheets integral with the shell (no removable bundle). Recommended for low fouling fluids on the shell side (mechanical cleaning is not possible), suitable for low and high pressure. May require an expansion joint (bellows) which may limit high-pressure applications on the shell side. The high degree of protection against contamination of streams. This type is the less costly TEMA design per square meter of heat transfer surface (provides maximum surface area) compared to removable bundle designs.

Floating Head with Backing Ring (AES, BES)
The bundle is removable. Suitable for applications requiring frequent tube-bundle removal for inspection and cleaning as well as large differential temperatures between shell and tube sides. Suitable for high-pressure applications. Recommended for non-hazardous fluids. Mechanical cleaning is possible on both sides (square tube layouts). Partial re-tubing is possible. Failure of gasket or tube leakage on the floating head side is not easy to detect. Shell cover, backing device and floating head cover must be removed to remove the tube bundle. More costly for the hydro test tube side, as it requires test rings.

Exchangers with Externally Sealed Floating Tubesheet (AEW, BEW):
The bundle is removable. Suitable for low-pressure and low-temperature applications. Recommended for non-hazardous fluids. Mechanical cleaning is possible on both sides. A maximum of two tube side passes is possible which may limit the utilisation of the tube side allowable pressure drop.

Outside Packed Floating Head Exchangers (AEP, BEP):
The bundle is removable. Differential expansion is provided by the packing. Suitable for low-pressure and low-temperature applications on the shell side due to its packing. Suitable for high-pressure on the tube side. Mechanical cleaning is possible on both sides (square tube layout). Recommended for non-hazardous fluids on the shell side. Large thermal shock applications should be avoided.

Pull-Through Floating Head Exchangers (AET, BET):
The bundle is removable. Suitable for low-pressure and low-temperature. Mechanical cleaning is possible on both sides. Failure of the seal or tube leakage on the floating head side is not easy to detect. Recommended for non-hazardous fluids. Expensive to build compared to the other TEMA types.
